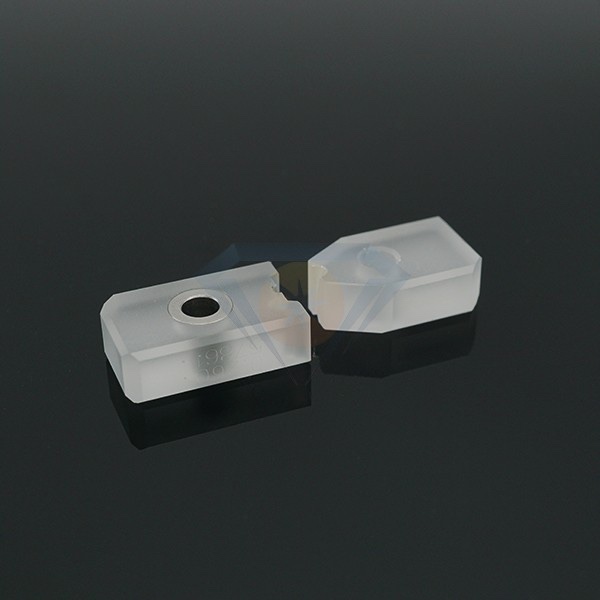

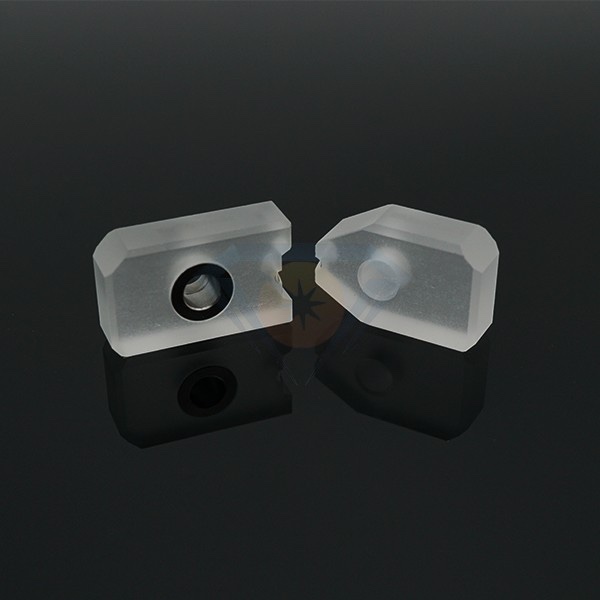

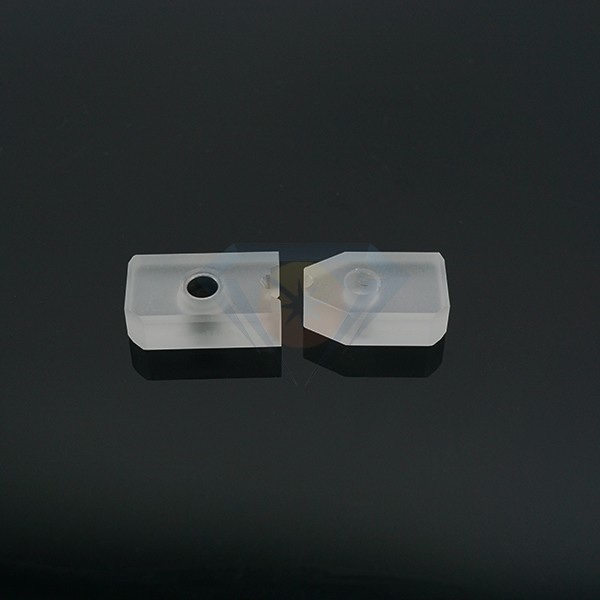

S101 Sodick Sapphire split guide AWT

Product Name: S101 Sodick Sapphire split guide AWT

Size: ID0.10 ~ 0.32mm

Material: SUS, sapphire

Application: Sodick EDM machine AQ/A/EPOC/AP/BF/JL/PGW/EXC/AF series

Standard: High-quality

Original: CHINA

We have the following original codes for the sapphire split guides:

3082283, 0205098   0.105mm

3080046, 0204679   0.11mm

3080051, 0205099   0.12mm

3083863, 0205101   0.155mm

3080053, 0205102   0.16mm

3080055, 0205363   0.17mm

3081482, 0205103   0.205mm

3080047, 0204680   0.21mm

3080058, 0205048   0.22mm

3081771, 0205267   0.255mm

3080629, 0204681   0.26mm

3080061, 0205049   0.27mm

3086400, 0205506   0.305mm

3081934, 0204701   0.31mm

3080063, 0205050   0.32mm

Features：

1. Produced according to the original samples

2. Best Sapphire, high precision inspection.

3. Lead time: 3-15 days

4. Payment terms: T/T, PayPal, Western Union.

5. Shipment: By air, by express

6. We can also customize wire guides with drawings or samples.
