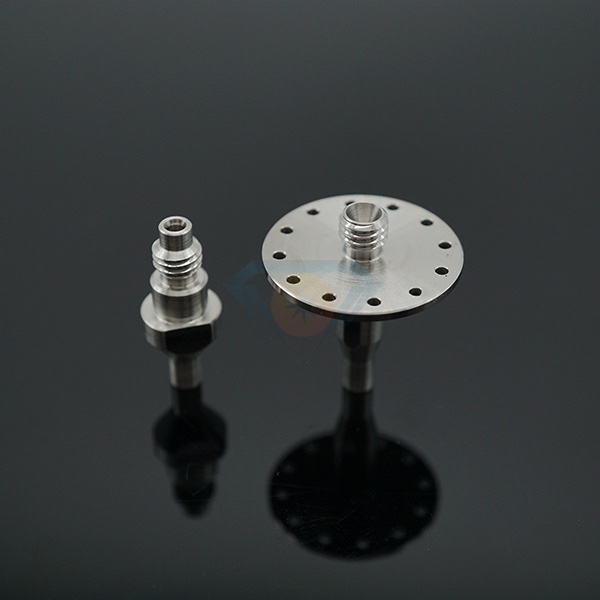

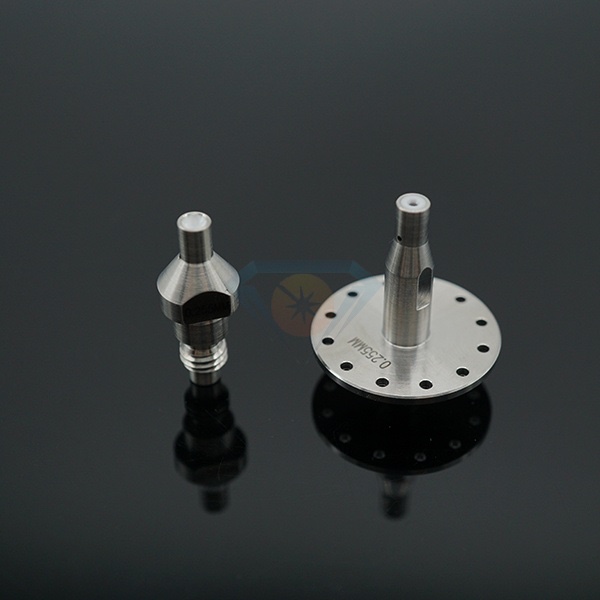

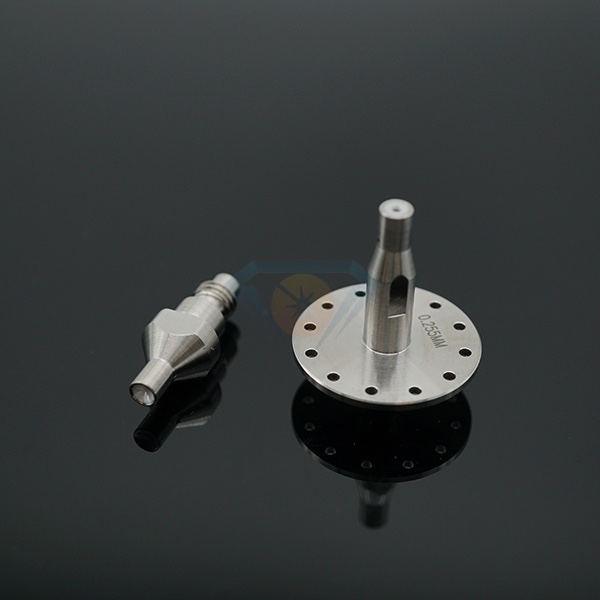

M132 M133 Mitsubishi diamond wire Guide China factory

M132 M133 Mitsubishi diamond wire Guide China factory

Size: 0.10-0.35mm

Material: SUS, ceramic, PCD, rubber

Application: Mitsubishi wire EDM machines

Standard: High-quality

Original: CHINA

The following sizes are all available; other sizes can also be customized

Upper wire guide M132

ID 0.035mm X056C412G53

ID 0.055mm X056C412G51

ID 0.075mm X056C412G54

ID 0.105mm X056C412G55

ID 0.21mm X056C833G51

ID 0.26mm X056C833G52

ID 0.31mm X056C833G53

ID 0.205mm X055C538G54, X056C833G54

ID 0.255mm X056C833G55, X055C538G55

ID 0.305mm X055C538G56, X056C833G56

ID 0.205mm X053C834G53, X052B387G54

ID 0.255mm X053C834G54, X055C538G55

ID 0.31mm   X053C834G56, X053C833G53

ID 0.105mm X053C834G51

ID 0.155mm X053C834G52

ID 0.305mm X053C834G55

Lower wire guide M133

ID 0.105mm X052B243G63, X056C426G52

ID 0.205mm X052B243G61, X052B387G54

ID 0.255mm X052B243G65, X052B507G55

ID 0.305mm X052B243G63, X052B387G56

ID 0.155mm X052B243G64

ID 0.31mm X052B243G62

ID 0.21mm X052B387G51

ID 0.26mm X052B387G52

ID 0.31mm X052B387G53

ID 0.255mm X052B387G55

ID 0.305mm X052B507G56

ID 0.035mm X052B243G73

ID 0.055mm X052B243G67

ID 0.075mm X052B243G66

Features：

1. Produced according to the original samples

2. Best diamond, high precision inspection.

3. Lead time: 3-15 days

4. Payment terms: T/T, PayPal, Western Union.

5. Shipment: By air, by express

6. We can also customize wire guides with drawings or samples.
