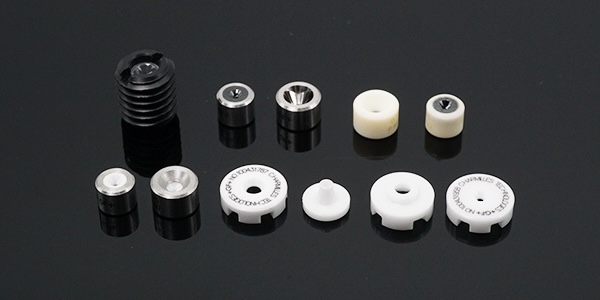

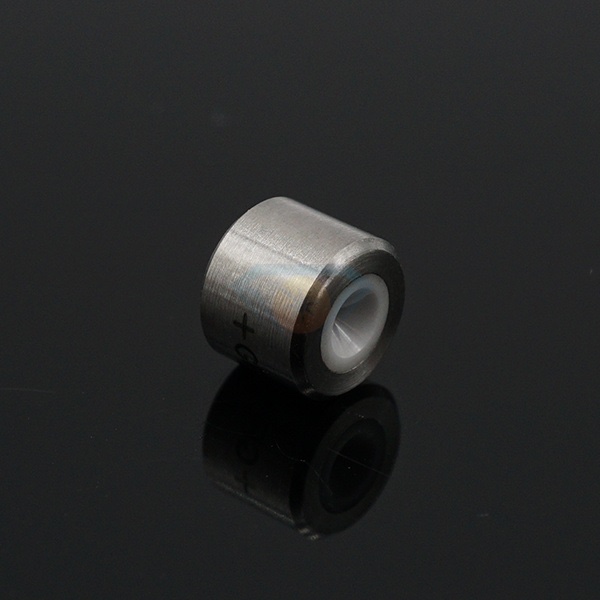

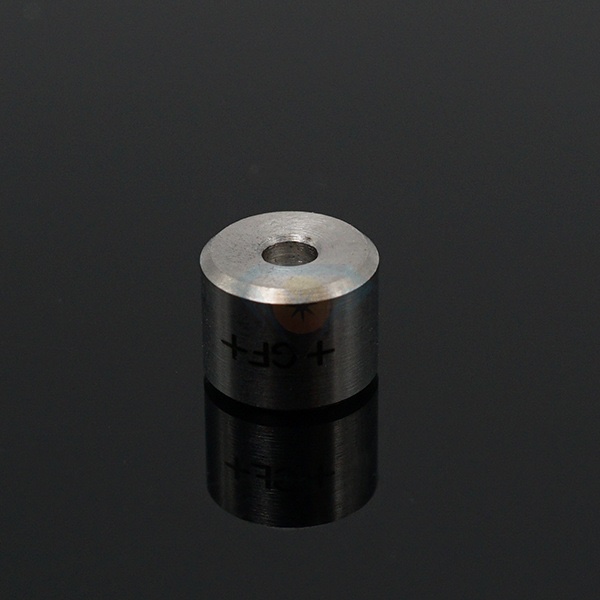

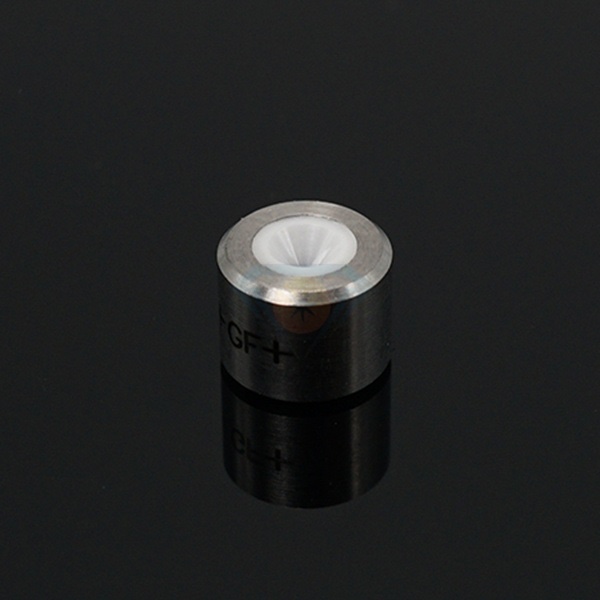

C104 Charmilles diamond wire guide
Size: 0.07 - 0.33 mm
Material: SUS, Ceramic, CVD
Application: Charmilles wire-cut EDM machine.
C104 Charmilles diamond wire guide, OEM diamond wire guides for wire-cut EDM machines, China manufacturer, high-quality Charmilles original replacement. ID 0.03- 0.35 mm—tolerance: +-0.001mm
Product Name: C104 Charmilles diamond wire guide
Size: ID 0.07 ~ 0.33mm
Materials: Ceramic + Ceramic, diamond (CVD)
Application: Charmilles wire-cut EDM machine
Standard: High-quality
Original: CHINA
Different codes for sizes ID: 0.07- 0.33 mm
ID 0.07mm 200431026, 431.026
ID 0.10mm 100431027, 431.027
ID 0.15mm 200431124, 431.124
ID 0.20mm 200431122, 431.122
ID 0.25mm 100430586, 430.586
ID 0.30mm 200432814, 432.814
ID 0.33mm 135006536
Features：
1. Produced according to the original samples
2. Best diamond, high-precision inspection.
3. Lead time: 3-15 days
4. Payment terms: T/T, PayPal, Western Union.
5. Shipment: By air, by express
6. We can also customize wire guides with drawings or samples.
